Hanging Curved LED Screen 0.8M 0.5M Aluminum Alloy Truss

Product Categories
Guangzhou Guofeng Stage Equipment Co., Ltd.
Contact Now

Hanging Curved LED Screen 0.8M 0.5M Aluminum Alloy Truss

Brand Name : GF truss

Model Number : GF-LGS

Certification : CE, SGS, TUV, ISO

Place of Origin : China

MOQ : 1pc

Price : US$10-US$5000/set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000set/week

Delivery Time : 5-7days

Packaging Details : Flight Case or air bubble film

Material : Aluminum Alloy 6061-T6

Color : Black or Silver

Size : 0.5M, 0.8M, 1M, OEM

Base Material : Steel

Ground Beam : Aluminum Alloy

Usage : Outdoor/Indoor LED Screen Haning

Cabinet Size : for All cabinets

Lead Time : 5-7days

Contact Now

Hanging curved LED Screen Aluminum Alloy Truss Display LED Screen Background Support Ground Support Frame

1. Feature:

1) Aluminum Alloy Ground Support is light-weight and powerful.

2) All connection is easy lock

3) Fast disassembly structure

2. Products Details

Part of LED Screen Support Specification
Background Supporter

Material: aluminum alloy 6061-T6
Main Tube: 50*3mm
Measure: 50*500*1000mm

According to cabinet Size, also can do 0.5M, 0.8M and so on.
Adjustable Base Material: aluminum alloy 6061-T6
Main Tube: 50*3mm
Measure: 150*500*1000mm
Ground Beam

Material: aluminum alloy
Size:69×138×6mm
Length:1M/pc
With Easy Lock
Measure: 1000X200X69mm

According to cabinet Size, also can do 0.5M, 0.52M, 0.64M, 0.96M and so on
Lock+ Clamp Material: aluminum alloy+Iron
stretchable clamp
Footboard

Material: aluminum alloy + 9mm plywood
Measure: 380*85*1000mm

According to cabinet Size, also can do different size footboard.
Horizontal Pipe

Material: aluminum alloy
Length:1M/pc
Measure: 50*50*1000mm

According to cabinet Size, also can do different size footboard.

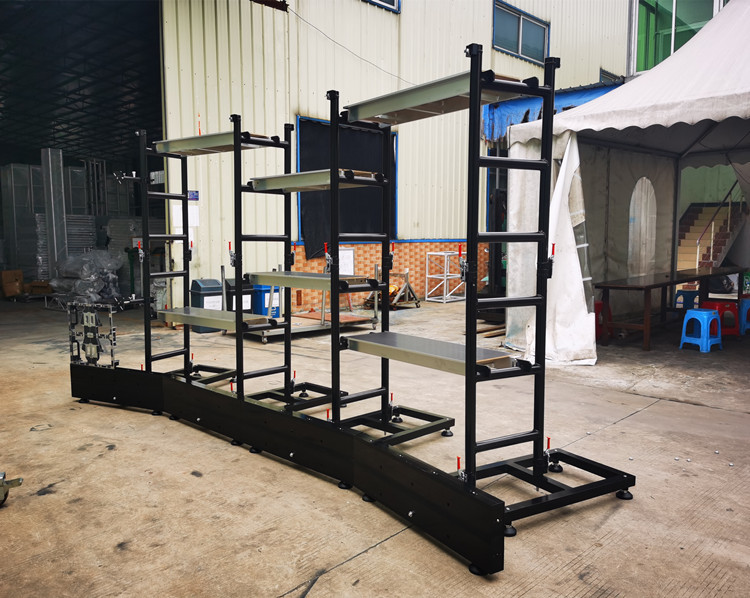

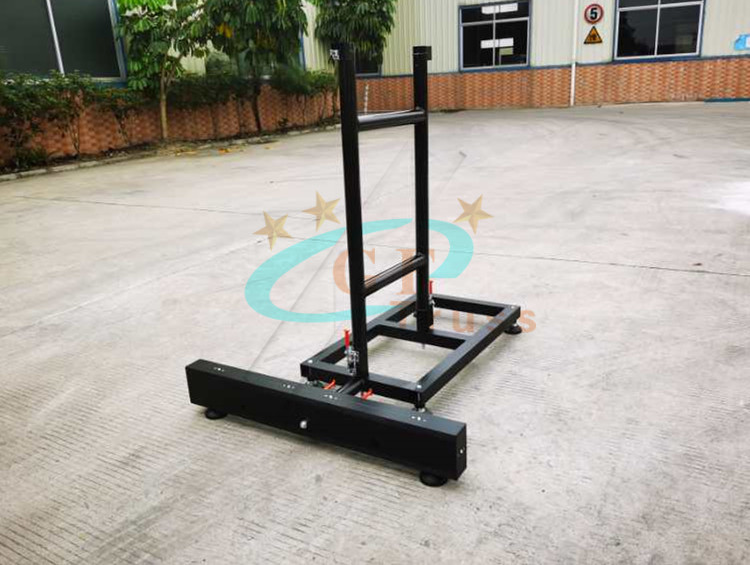

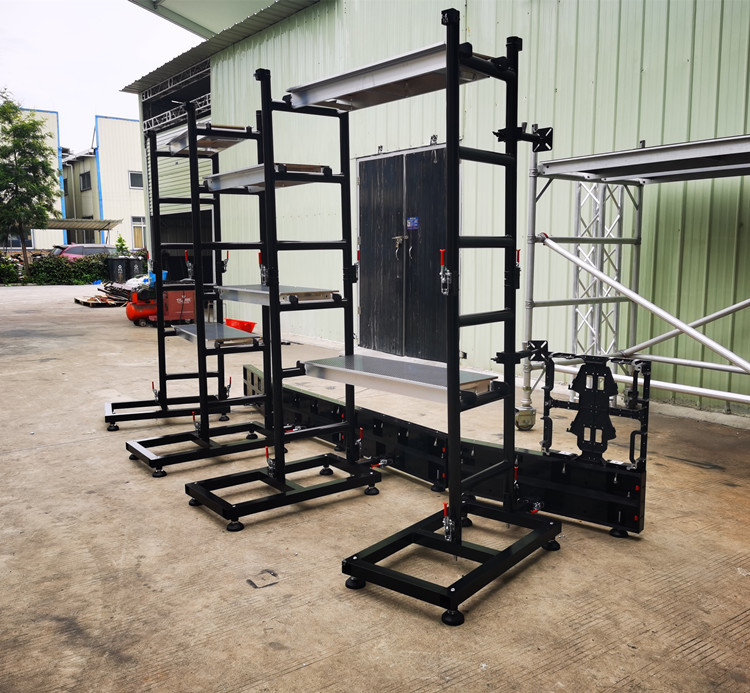

3. Products Detail Pictures:

Hanging Curved LED Screen 0.8M 0.5M Aluminum Alloy TrussHanging Curved LED Screen 0.8M 0.5M Aluminum Alloy Truss

Hanging Curved LED Screen 0.8M 0.5M Aluminum Alloy Truss
